Our Latest Gripper Technology
Innovating the future of robotic grippers for precision and efficiency.
WHAT ARE SOFT GRIPPERS
Soft grippers are advanced robotic end-effectors designed to handle delicate and irregularly shaped objects with ease. They use soft, flexible materials that conform to the shape of the object being gripped, making them ideal for applications where traditional grippers might damage or slip off fragile or complex items.
WHAT WE OFFER
Our soft grippers come in various designs to suit different tasks. Whether you need a 3-finger gripper for small, delicate items or a 6-finger gripper for larger, industrial applications, we have a solution tailored to your needs.
Easy Integration

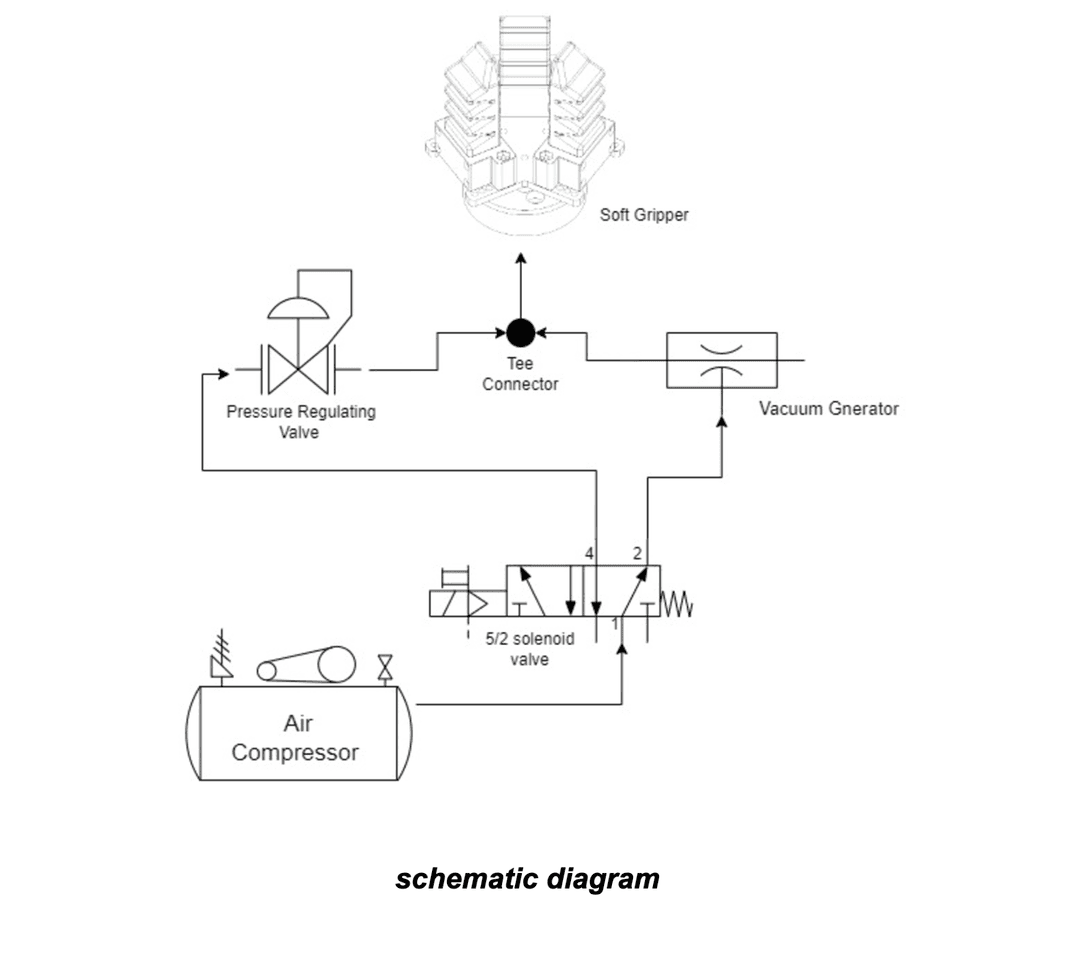

Simple setup with a 5/2 solenoid valve, pressure-regulating valve, and vacuum generator.
Customizable Grip Force
The pressure settings allow you to control the force applied based on the material being handled.
Safe for Fragile Objects
Soft, flexible materials ensure delicate items won’t be damaged during handling.
TECHNICAL SPECIFICATIONS
1. General Information
- Gripper Type: Soft Robotic Gripper
- Number of Fingers: Configurable: 2, 3, 4, 5, or 6
- Application Domain: Food Handling, Sorting, Handling delegated items
- Compatible Robots: Universal dimension
- Material Composition: Silicon, TPU
2. Physical Specifications
- Finger Length: 130 mm (customizable for application)
- Gripper Width: 330 mm
- Total Weight: 220g
- Mounting Type: Socket Head Allen Bolt
- Operating Environment: Food safe, operating temperature -10°C to 60°C
3. Performance Specifications
- Payload Capacity: 0.2kg - 0.3kg
- Actuation Mechanism: Pneumatic Link
- Closing Speed: Adjustable
- Grip Strength: 3 psi
- Finger Flexibility Range: 45° - 120°
4. Operational Requirements
- Operating Pressure: 3-6 bar (optimal at 4.5 bar)
- Power Supply Requirement: Not applicable (pneumatic actuation only)
- Control System Interface: Pneumatic control valves (compatible with PLC/ROS systems)
5. Customization Options
- Finger Count: 2 - 6 finger
- Material Type: Food Grade Silicon
- Grip Pattern: Smooth, Textured
- Mounting Compatibility: Universal flange Dimension
6. Accessories and Attachments
- Adapters/Flanges: Custom mounting plates for various robot brands
- Finger Covers: Flexible, food-safe pneumatic tubing in customizable lengths
- Air Hose: Optional lengths, X m
EXPLORE OUR PRODUCTS

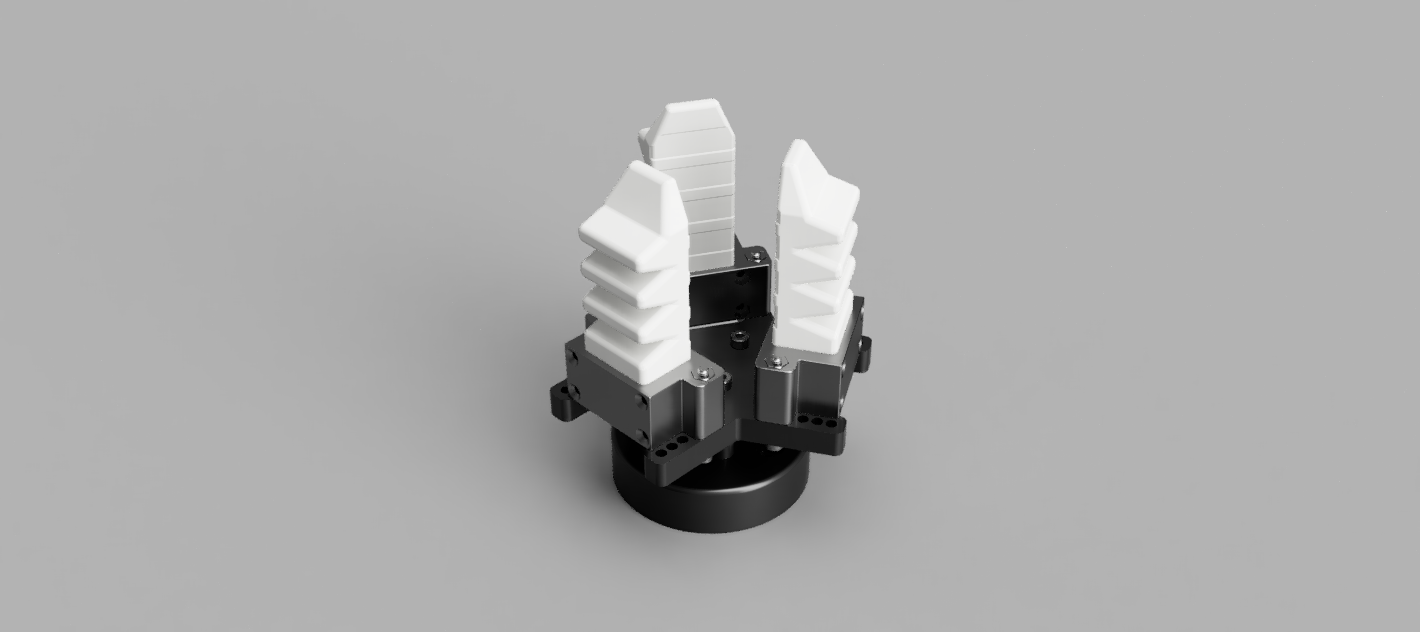

3-Finger Gripper
Ideal for precise handling and adaptable to various applications.
5-Finger Gripper
Enhanced versatility and performance for diverse tasks.

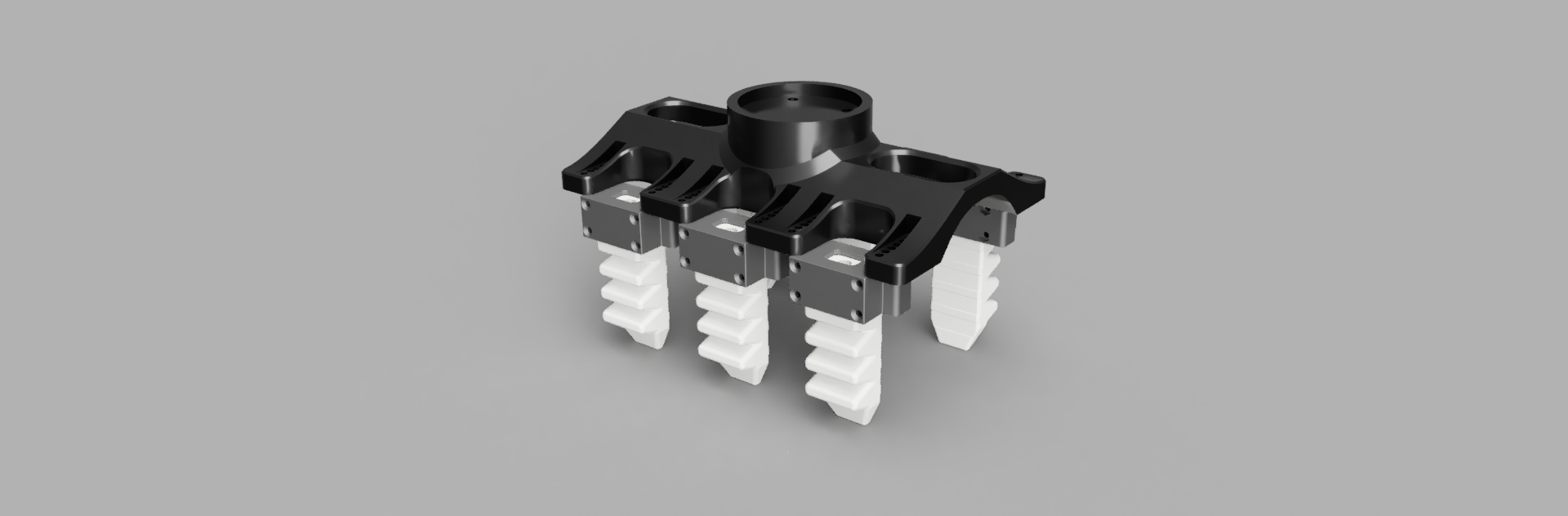

6-Finger Gripper
Maximum adaptability and grip strength for complex applications.
- Trigger the solenoid to open the soft gripper by applying vacuum (-2 bar).
- Trigger the solenoid to close the gripper by applying positive air pressure (0.1-0.3 bar).
